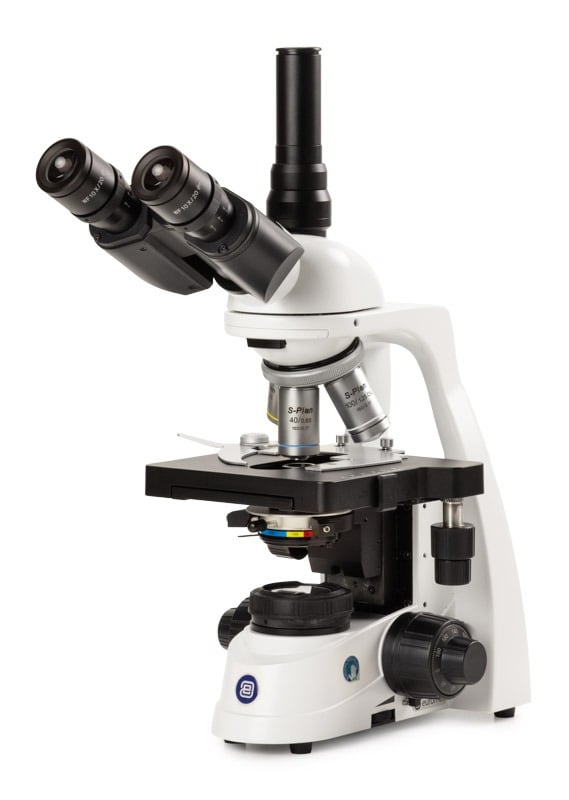

Euromex BlueScope Transmitted Light Microscope BL.1153
Euromex · BL.1153
Article No. AK-CL-233Product details
- Article number
- AK-CL-233
- Category
- Clinical Laboratory
- Brand
- Euromex
- Model
- BL.1153
Description
The Euromex BlueScope transmitted light microscope is designed for educational institutions, medical laboratories, and routine applications, combining high build quality and intuitive operation. Its infinity optical system with high-quality anti-reflective, fungicide-treated semi-plan objectives ensures long-lasting image quality and supports precise microscopic analysis. The rackless mechanical stage and height-adjustable microscope head with two locking positions enable ergonomic, stable, and comfortable operation even during extended use. Precise coaxial coarse and fine focusing with quick-focus assist allows fast and accurate focusing while protecting both specimen and objective via an adjustable stage stop. Köhler illumination combined with a dual NeoLED™ lighting system (white and halogen-like light) provides uniform, high-contrast illumination and flexible adaptation to different examination needs. The colour-coded, height-adjustable Abbe condenser with iris diaphragm allows precise control of the light cone, supporting highly accurate specimen observation. A robust metal housing, integrated Kensington security slot, and built-in cable and accessory storage make the BlueScop
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Euromex
- Model
- BL.1153
- Product type
- Microscopes
- Models
- Monocular, binocular, trinocular (depending on model)
- Optical system
- Infinity optics with semi-plan objectives, anti-reflective and fungicide-treated
- Eyepieces
- Widefield WF 10x/20 mm, secured
- Monocular
- with pointer
- Binocular/trinocular
- adjustable interpupillary distance (48–75 mm), ±5 dioptres on both eyepieces
- Trinocular
- Fixed beam splitter (50:50), upright image
- Nosepiece
- Reversed quadruple nosepiece on ball bearings
- Optional
- S60x (spring-loaded), S100x (spring-loaded, oil)
- Focusing
- Coaxial coarse and fine focusing with quick focus assist
- Precision
- 2 μm per division, 0.2 mm per rotation
- Adjustment range
- approx. 10 mm
- Accessory compartment
- Integrated, with intelligent storage compartment
- Safety features
- Kensington security slot
