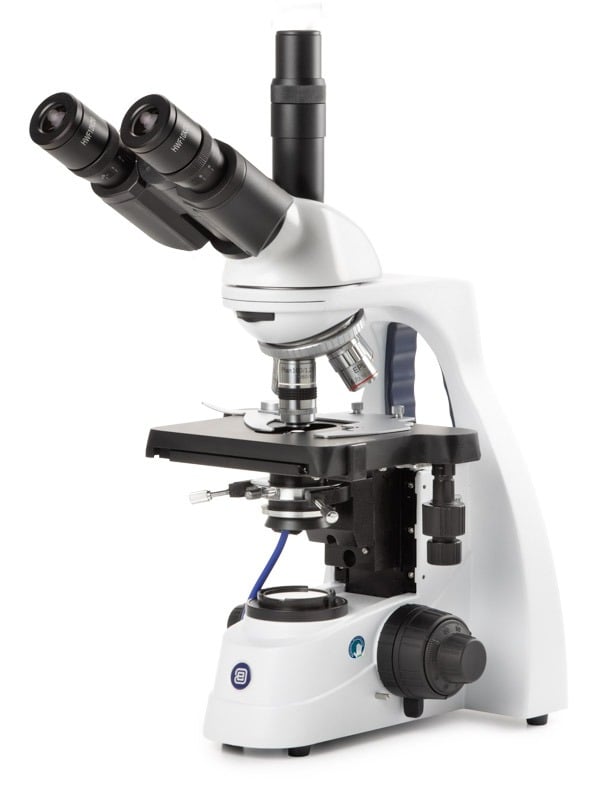

Euromex bScope Darkfield Microscope BS.1153-EPL/DF

Description

The Euromex bScope Darkfield Microscope is designed for professional use in research, laboratory diagnostics, and education, providing a precise solution for demanding darkfield microscopy. The trinocular Siedentopf head (360° rotation, 30° inclination) and dioptre adjustment on the left eyepiece (±5 dpt) allow comfortable adaptation to individual viewing requirements. Adjustable interpupillary distance (48–76 mm) and secured HWF plan 10×/20 mm widefield eyepieces ensure a stable, high-quality viewing experience with a wide field of view. The microscope features an inverse quadruple nosepiece with E-Plan objectives (4×, 10×, S40×, S100× oil immersion). The S100× oil immersion objective includes an integrated iris diaphragm, optimised for darkfield applications. Spring-loaded S40× and S100× objectives help protect both specimens and optics from damage, while multi-coated, anti-fungal treated lenses ensure high light transmission and durability. Darkfield imaging is achieved via a cardioid mirror condenser with integrated 5 W NeoLED™ illumination, delivering high-contrast visualisation of specimens. The system is precisely matched to the S100× oil immersion objective for optimal dark
