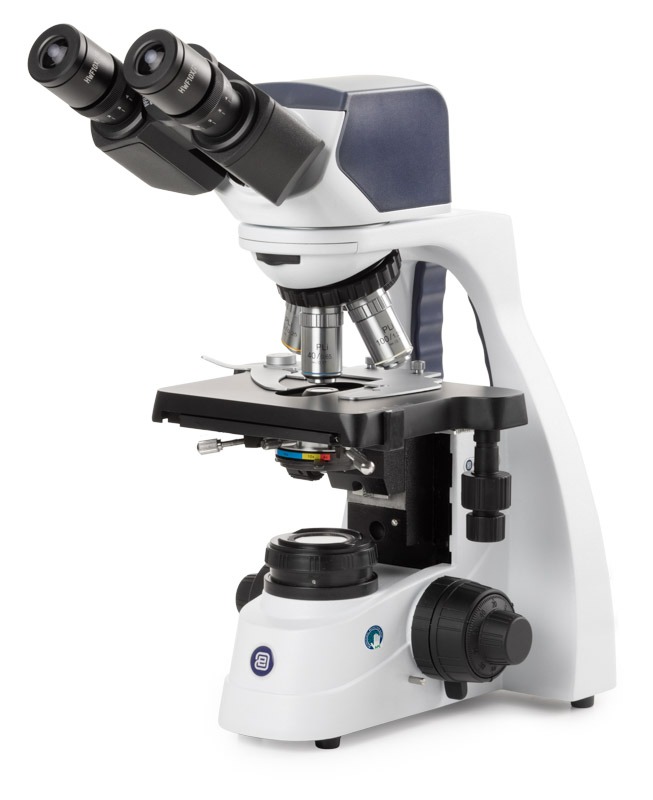

Euromex bScope Digital Microscope BS.1157-PLi

Euromex · BS.1157-PLi

Article No. AK-CL-235

Product details

Article number
AK-CL-235
Category
Clinical Laboratory
Brand
Euromex
Model
BS.1157-PLi

Description

The Euromex bScope Digital Microscope is designed for professional use in laboratories, research facilities, and educational institutions. The binocular Ergo head, adjustable in two positions, ensures ergonomic handling and comfortable observation even during extended use. The integrated 5.1 MP CMOS colour USB 2.0 camera delivers high-resolution digital imaging up to 2592 × 1944 pixels and supports live viewing at up to 27 frames per second. The included ImageFocus Alpha software enables comprehensive image and video analysis, storage, and editing. Measurements and annotations can be performed directly on live or recorded images, improving efficiency in everyday clinical and laboratory workflows. The software is compatible with Windows 10 and higher as well as macOS, with regular free updates ensuring long-term usability. High precision and image quality are achieved through E-Plan IOS or Plan IOS infinity-corrected objectives, a colour-coded height-adjustable condenser, and powerful Köhler NeoLED™ transmitted light illumination. The scratch-resistant mechanical stage with integrated cross table enables smooth and controlled specimen movement, while the Cable Storage System and int

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Euromex
Model
BS.1157-PLi
Product type
Microscopes
Eyepieces
HWF 10x/20 mm (secured)
Resolution
2592 x 1944 pixels
Dynamic range
76 dB
Signal-to-noise ratio
41 dB
Software
ImageFocus Alpha
Image formats
JPG, TIF, BMP, DICOM
Video format
AVI
Functions
Image capture, measurements, annotations, analysis
Compatibility
Windows 10 and higher (32/64 bit), Mac OS
Condenser
Colour-coded, height-adjustable (Abbe N.A. 1.25)
Illumination
3 W Köhler NeoLED™ transmitted light illumination (adjustable)
Stage
Scratch-resistant stage with integrated X/Y cross table (without protruding rack)
Focusing
Double coaxial, coarse and fine drive, low-positioned
Optional
Battery operation possible
Warranty
10 years (2 years on the camera)
