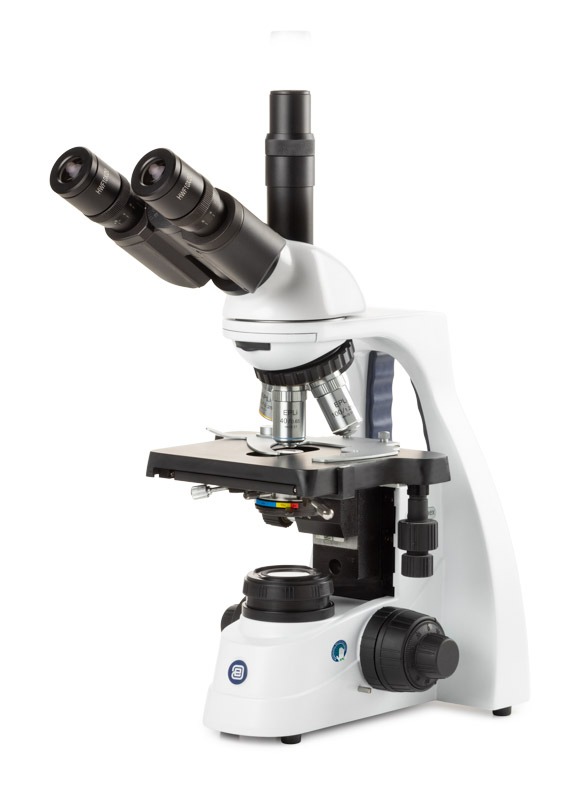

Euromex bScope Laboratory Microscope BS.1153-EPLi
Euromex · BS.1153-EPLi
Article No. AK-CL-236Product details
- Article number
- AK-CL-236
- Category
- Clinical Laboratory
- Brand
- Euromex
- Model
- BS.1153-EPLi
Description
The Euromex bScope laboratory microscope is a modern and versatile microscope specifically developed for professional use in medical laboratories, research facilities, and educational institutions. High precision and reliability define this microscope: it is equipped with secured wide-field HWF Plan 10x eyepieces (20 mm field of view), ensuring excellent image quality. Monocular, binocular, and trinocular models offer flexible adaptation to the specific requirements of daily laboratory work. The ergonomic design, featuring low-positioned coaxial coarse and fine focus knobs as well as a robust, scratch-resistant stage, enhances user comfort. Depending on the model, an ergonomically adjustable tube additionally ensures a comfortable working position. The precise focusing system, with 180 increments and a fine focus precision of 1.11 µm, provides optimal sharpness and protects both objectives and specimens from damage thanks to an adjustable stage stop. Particular attention has been paid to efficiency and hygiene: the bScope features an integrated cable storage system, an anti-theft slot, and a convenient carrying handle for safe transport. The objectives are AR-coated and anti-fungal
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Euromex
- Model
- BS.1153-EPLi
- Product type
- Microscopes
- Monocular
- 45° inclined tube, Ø 23.2 mm
- Diopter adjustment
- ±5 (binocular/trinocular, left tube)
- Interpupillary distance
- 48–76 mm adjustable
- Standard objectives
- 4x/0.10 – 10x/0.25 – S40x/0.65 – S100x/1.25 (oil immersion)
- Optional
- 20x/0.40 and 60x/0.85
- Travel
- approx. 19 mm, 200 µm per rotation
- Objective configurations
- E-Plan, E-Plan IOS, or Plan IOS
- Eyepieces
- Secured wide-field HWF Plan 10x/20 mm, monocular models with pointer
