Euromex Explorer USB Microscope Camera

Clinical Laboratory

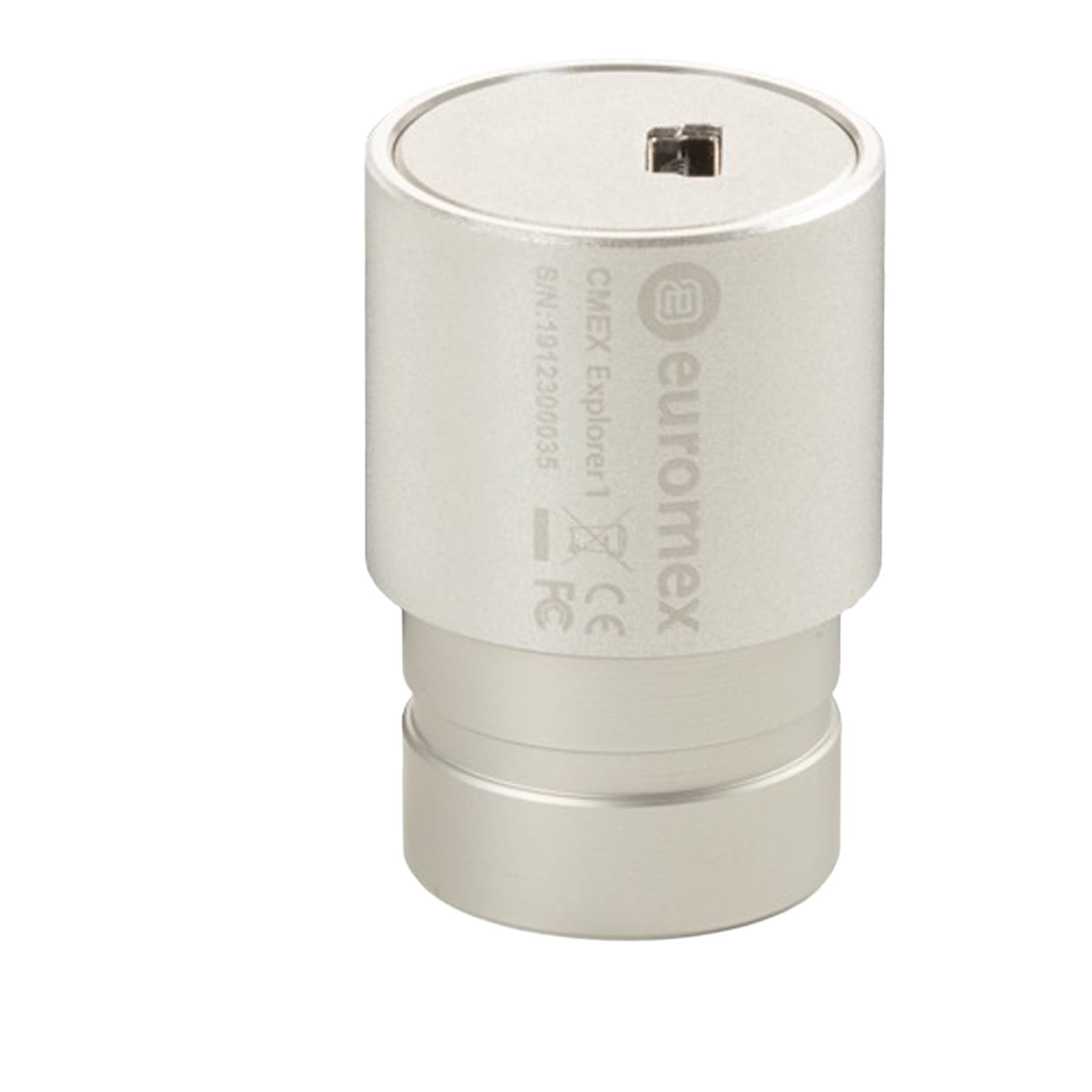

Euromex Explorer USB Microscope Camera DC.5100E

Euromex · DC.5100E

Article No. AK-CL-242

Product details

Article number
AK-CL-242
Category
Clinical Laboratory
Brand
Euromex
Model
DC.5100E

Description

The Euromex Explorer USB Microscope Camera is a compact CMOS eyepiece camera designed for digital microscope imaging and the easy documentation of microscopic specimens. Developed especially for educational applications, it enables fast, user-friendly and precise image capture for teaching, analysis and presentation purposes. Its straightforward integration into existing microscope workflows makes it a practical solution for schools, training environments and laboratories. The camera supports high-quality digital imaging with detailed specimen views and reliable image capture under varying lighting conditions. Autoexposure and a wide dynamic range help ensure consistent image quality, while the USB 2.0 interface allows convenient connection to a computer for efficient data transfer and image management. Supplied in a compact housing without projection lens, the camera is suitable for eyepiece and tube mounting and can be used with compatible microscopes. The included ImageFocus Explorer software supports image capture, editing and documentation, making it ideal for interactive teaching and professional microscopy applications. Compatibility with Windows operating systems ensures ea

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Euromex
Model
DC.5100E
Product type
Microscopes
Article number
DC.5100E
Sensor
CMOS, 1/2.8"
Resolution
2592 x 1944 pixels
Megapixels
5.1 MP
Pixel size
2.0 x 2.0 µm
Frame rate
up to 26 frames/s at 2592 x 1944 pixels
Exposure
Autoexposure
Exposure time
0.1 to 2000 ms
Dynamic range
73 dB
Signal-to-noise ratio
max. 43 dB
Sensitivity
555 mV/lux-sec at 550 nm
Data interface
USB 2.0, 480 Mbit/s
Housing dimensions
27.2 mm diameter x 40 mm length
