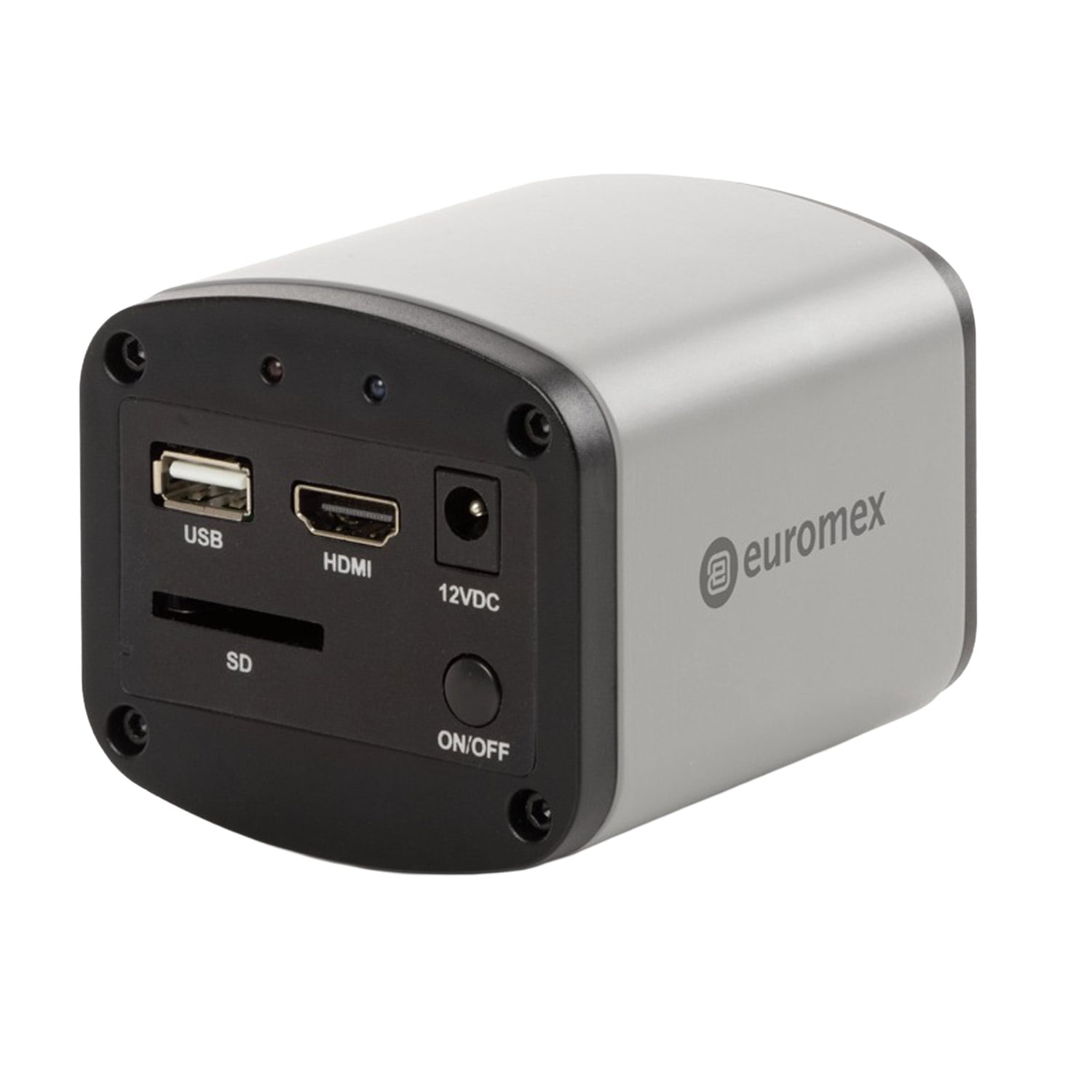

Euromex HD-Lite Microscope Camera VC.3031
Euromex · VC.3031
Article No. AK-CL-243Product details
- Article number
- AK-CL-243
- Category
- Clinical Laboratory
- Brand
- Euromex
- Model
- VC.3031
Description
The Euromex HD-Lite microscope camera is designed for digital live image display in microscopy and supports applications in biology, metallurgy and stereomicroscopy. It delivers HD1080p real-time images with excellent colour reproduction, enabling detailed viewing and documentation of microscopic specimens. Thanks to the HDMI and USB 2.0 interfaces, the camera can be used both with and without a computer. In stand-alone mode, images and 1080p videos in .avi format can be recorded directly onto the integrated SD memory card. User-friendly mouse-controlled software with automatic image adjustment simplifies operation and supports an efficient microscopy workflow. The C-mount interface allows connection to Euromex microscopes using a suitable adapter and also supports compatibility with many microscope models from Zeiss, Leica, Olympus and Nikon. When used with a computer, the included ImageFocus Plus software provides additional functions for image capture, measurements, annotations and digital storage of images and videos. Equipped with a high-sensitivity sensor, the Euromex HD-Lite microscope camera performs reliably under different lighting conditions, including low-light environm
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Euromex
- Model
- VC.3031
- Product type
- Microscopes
- Resolution
- HD 1080p; sensor resolution up to 2592 x 1944
- Sensor
- 1/2.8" Sony CMOS
- Pixel size
- 2.0 x 2.0 µm
- Interfaces
- HDMI, USB-2, SD memory card
- Operating mode
- stand-alone or computer-controlled
- Operation
- mouse-controlled software, automatic operation
- Colour depth
- 24 bit
- ADC
- 16 bit
- Frame rate
- up to 15 frames/second at HDMI 1080p
- Connection
- C-mount
- Software
- ImageFocus Plus compatible
- Supported operating systems
- Windows 10/11, 32-bit and 64-bit
- Images
- jpg, tiff, bmp
- Videos
- .avi
