NADAL® Dry Bath Incubator

Clinical Laboratory

NADAL® Dry Bath Incubator 65002

nal von Minden · 65002

Article No. AK-CL-451

Product details

Article number
AK-CL-451
Category
Clinical Laboratory
Brand
nal von Minden
Model
65002

Description

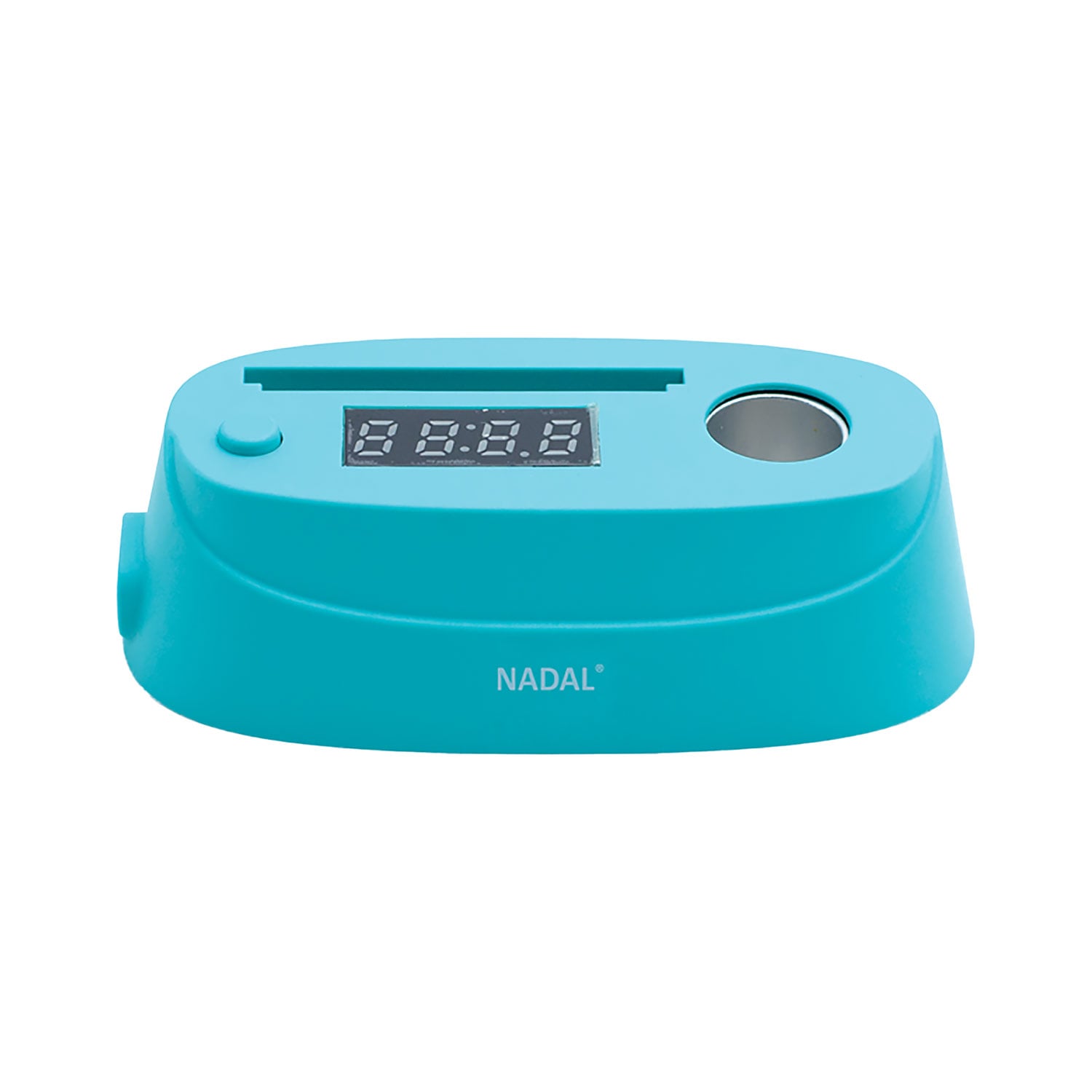

The NADAL® Dry Bath is a compact and efficient device for the pre-incubation of test cassettes, for example in microbiological detection procedures such as Strep A/B. It serves as an accessory for the NADAL® PCR-Analyzer and enables precise temperature control of samples through a constant temperature setting at 65 ± 3 °C. The dry bath is equipped with a countdown function that allows exact monitoring of the incubation time, thus contributing to high reproducibility and reliability of test results. The simple operation is carried out via a power switch and a digital display, which shows both the current temperature and the incubation progress in real time. After the preheating process is complete, the sample is placed in the dry bath and the 5-minute countdown is started. An acoustic signal as well as a flashing display indicate the end of the incubation process, which facilitates workflow in diagnostics and increases process safety. Thanks to its compact design and USB-C power supply, the device is ideal for use in daily work in a medical practice and laboratory environments. Compliance with the IEC 60335-1:2020 standard ensures safe operation in accordance with current medical re

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
nal von Minden
Model
65002
Product type
Analysis Devices
Compatibility
Accessory for the NADAL® PCR-Analyzer
Power supply
USB cable Type-C, 5 V DC
Rated power
10 W
Temperature range (operation)
65 ± 3 °C (constant)
Dimensions
86 × 43 × 27 mm
Countdown function
5 minutes, digitally displayed
Standard
IEC 60335-1:2020
Scope of delivery
NADAL® dry bath incubator, USB cable Type-C, user manual
Model designation
NADAL® Dry Bath Incubator
Article number
65002
Operating voltage
5 V DC
Temperature control
65 ± 3 °C (constant)
