Clinical Laboratory

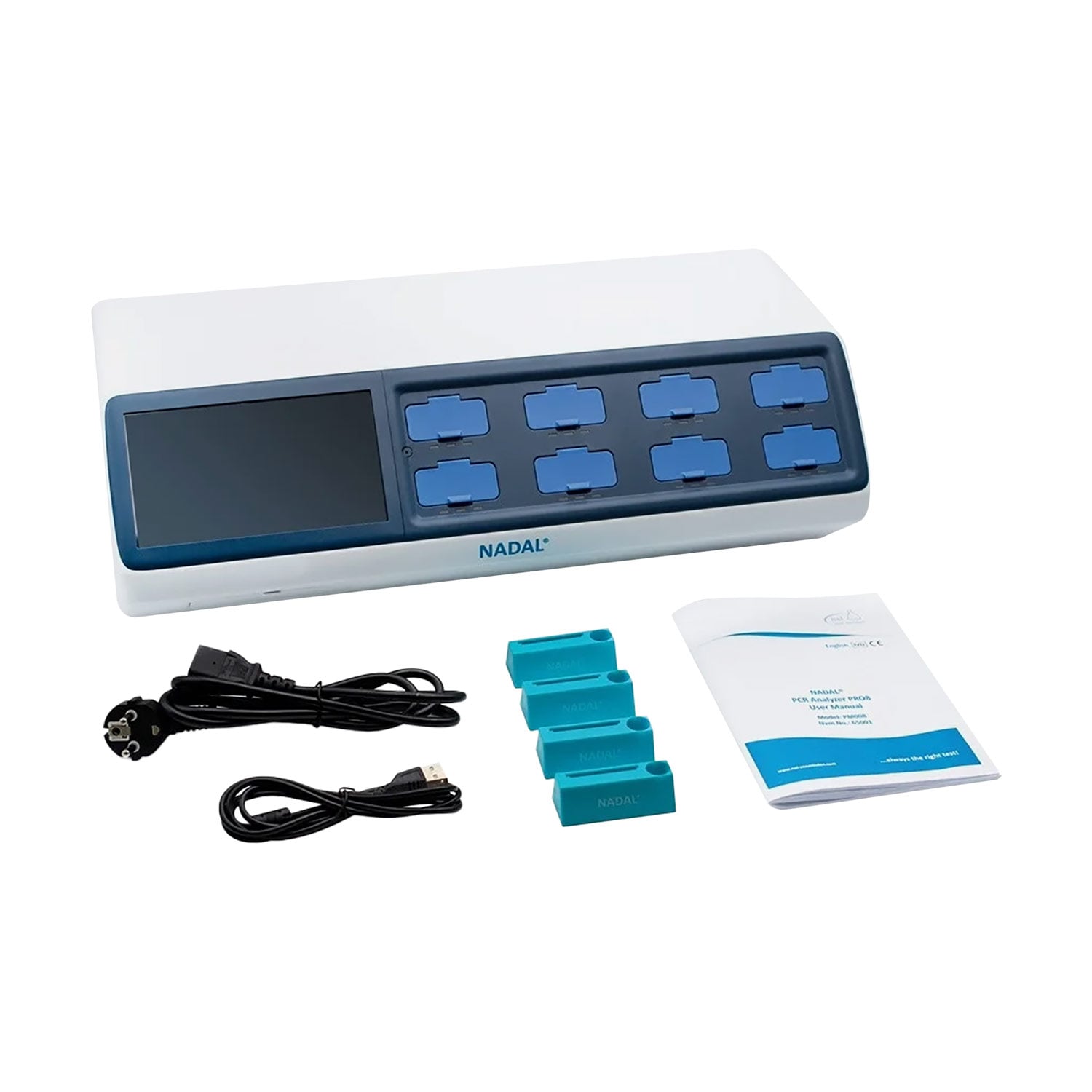

NADAL® PCR Analyzer PRO8 65001
nal von Minden · 65001
Article No. AK-CL-459Product details
- Article number
- AK-CL-459
- Category
- Clinical Laboratory
- Brand
- nal von Minden
- Model
- 65001
Description
With the NADAL® PCR Analyzer PRO8, you have access to an innovative point-of-care analysis tool that enables rapid and reliable diagnostics of bacterial and viral infections directly in your medical practice or laboratory. The system operates based on isothermal nucleic acid amplification and provides PCR-quality results for up to eight samples simultaneously – with an evaluation time of just 15 to 35 minutes. The application is particularly user-friendly: All required reagents are already contained in the test cassette, so no pipetting is necessary and handling is significantly simplified. The test cassettes can also be conveniently stored at room temperature, which facilitates storage and increases flexibility in daily work in a medical practice. Thanks to the wide range of available test parameters – including Streptococcus A/B, Influenza A/B, SARS-CoV-2, HPV, RSV, Trichomonas vaginalis, Gonorrhoea, Ureaplasmas – the analyzer is ideally suited for use in gynaecology, ENT medicine, and general medicine. The NADAL® PCR Analyzer PRO8 supports you in detecting infectious diseases early and on an evidence-based basis, thereby significantly increasing patient safety. The intuitive sof
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- nal von Minden
- Model
- 65001
- Product type
- Analysis Devices
- Weight
- 5.5 kg
- Maximum test capacity
- 8 test cassettes simultaneously
- Test time
- 15–35 minutes (depending on test card)
- Operating temperature range
- 15 °C to 30 °C
- Relative humidity (operation)
- ≤80% (non-condensing)
- Temperature accuracy
- ±0.5 °C
- Temperature uniformity
- ±1.5 °C (after 5 minutes)
- Heating rate
- ≥10 °C/min
- Input power
- AC 100–240 V, 50/60 Hz
- Power consumption
- 120 W
- Interfaces
- USB Type-A, USB Type-B, RJ-45 (network)
- Touchscreen
- TFT, IPS, 164.9 × 100 mm
- User interface
- Touchscreen and barcode scanner
- Sample identification
- Automatic (ID scan)
- Light source
- LED
