Veterinary

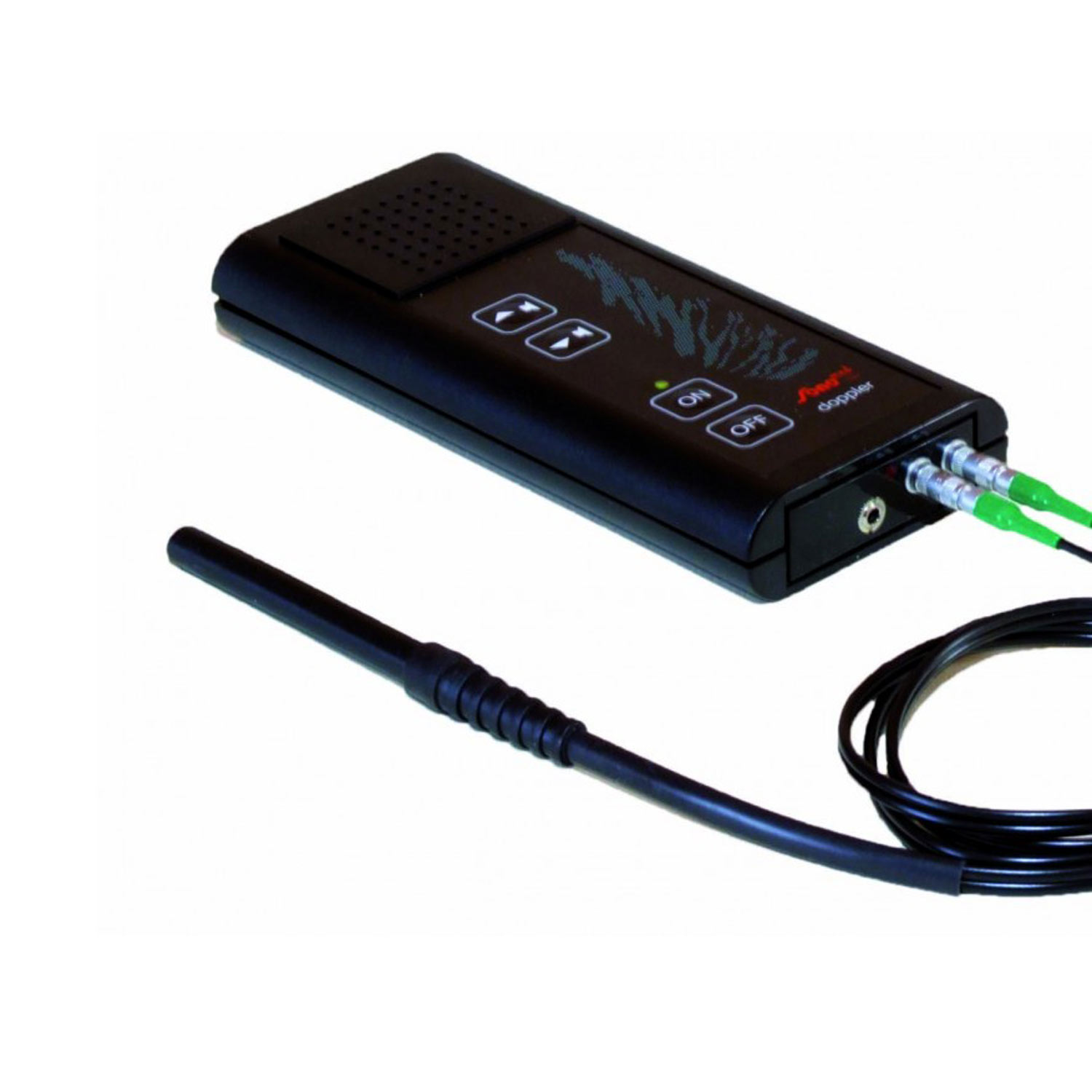

DOP143 VET Doppler
Mano Médical · DOP143
Article No. AK-VET-1120Product details
- Article number
- AK-VET-1120
- Category
- Veterinary
- Brand
- Mano Médical
- Model
- DOP143
Description
The DOP143 VET Doppler has been specifically designed for reliable and precise blood pressure measurement in small animals, making it ideal for use with cats and small dogs. The system features a 8 MHz ultrasound probe with a wide sound cone, providing excellent flow detection even in small vessels. The high sensitivity of the probe ensures a clear acoustic signal, allowing accurate identification of the pulse wave. Its compact design makes the device perfect for mobile use in clinics or everyday veterinary practice. The probe can be positioned flexibly on the paw or tail, allowing individual adjustment for different species and sizes. The acoustic signal volume is continuously adjustable, ensuring optimal audibility in various environments. A key benefit is the early detection of hypertension, which is common in geriatric patients—especially cats with chronic kidney disease—and often remains asymptomatic until later stages. Regular blood pressure monitoring contributes significantly to patient safety and helps prevent secondary organ damage (e.g., CNS, eyes, kidneys). The DOP143 VET Doppler also supports monitoring during anesthesia and intensive care by providing continuous detec
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Mano Médical
- Model
- DOP143
- Product type
- Blood Pressure Monitor
- Application
- Veterinary practice
- Ultrasound frequency
- 8 MHz
- Audio output power
- 200 mW
- Frequency range
- 300 Hz – 6 kHz
- Battery
- 3 x 1.2 V (1500 mAh)
- Operating time
- approx. 6 hours
- Charging time
- approx. 15 hours
- Dimensions
- 175 x 80 x 25 mm
- Weight (including battery)
- 300 g
- Acoustic headphone output
- mini-jack
- Included accessories
- transversal linear probe (8 MHz)
- Power supply
- 3 x 1.2 V rechargeable batteries (1500 mAh)
