InSight Mini Chem Meter

Veterinary

InSight Mini Chem Meter WD0725

Woodley Equipment · WD0725

Article No. AK-VET-1293

Product details

Article number
AK-VET-1293
Category
Veterinary
Brand
Woodley Equipment
Model
WD0725

Description

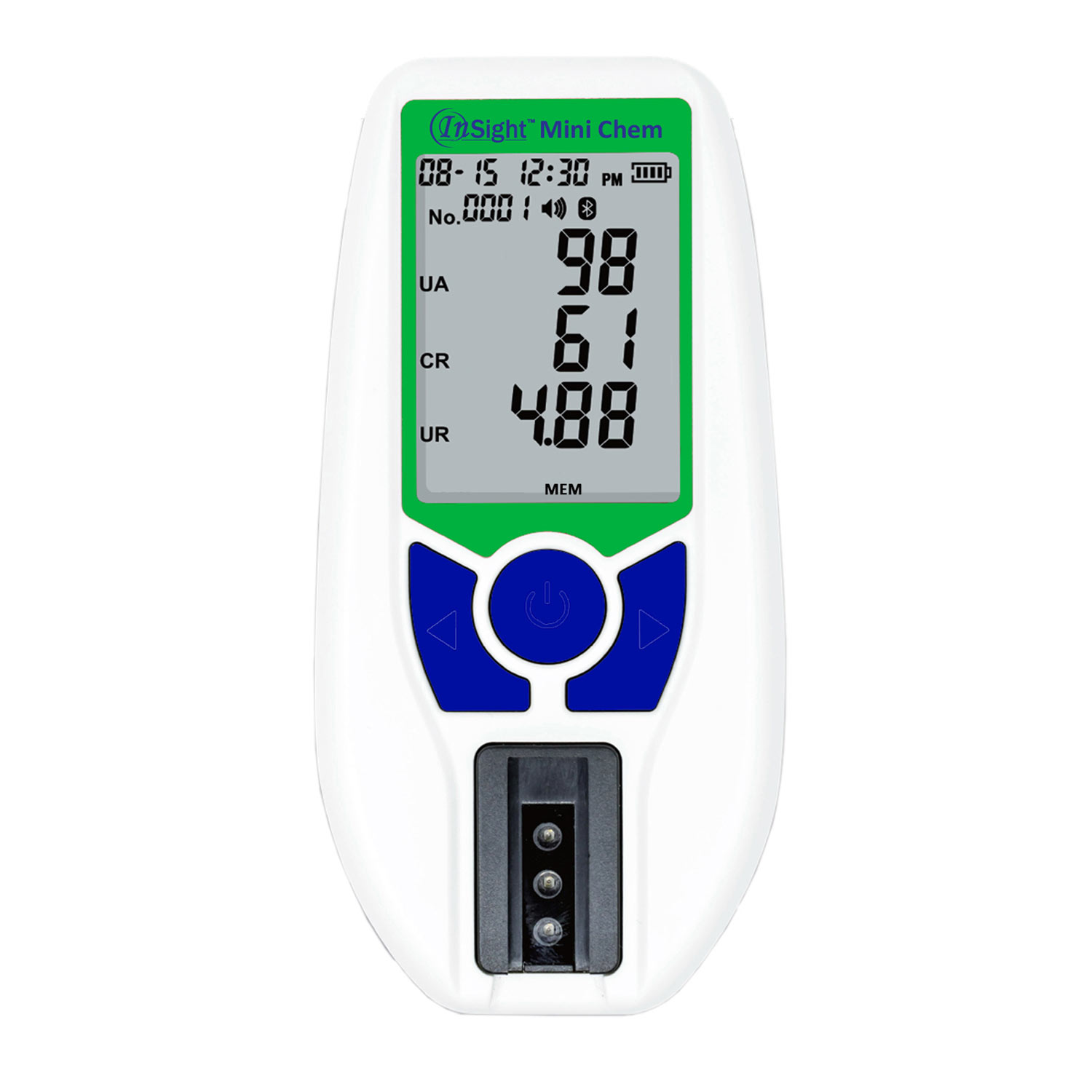

The InSight Mini Chem Meter is designed for the quantitative determination of uric acid, creatinine and urea in capillary or venous whole blood, plasma and serum from dogs or cats. The meter works on the principle of photochemistry and is used with associated test strips. The InSight Mini Chem Meter is switched on, the test strip inserted and the sample material applied. The test result can only be read after 5 minutes. Up to 500 results can be archived in the internal memory and the Bluetooth function allows data transfer to a computer, tablet or smartphone. The included lithium battery can be charged via USB connection. You can purchase the mobile device for measuring kidney function in animals with either the measuring units mg/dl or μmol or mmol. Results below the range will display "Lo" and results above the range will display "Hi". Normal ValuesUric AcidCreatinineUreaDog0 - 100 μmol/l35 - 141 μmol/l2.1 - 9.3 mmol/lCat0 - 60 μmol/l62 - 177 μmol/l4.6 - 13.2 mmol/l Reference ranges may vary from laboratory to laboratory. Each laboratory should establish its own reference range if required.

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Woodley Equipment
Model
WD0725
Product type
Analysis Devices
Application
Veterinary practice
Method
Reflectance photometer
Sample material
Capillary or venous whole blood, serum or plasma
Sample volume
35 μl
Multifunction
3 parameters on 1 reagent strip
Dimensions
13.5 x 6.6 x 1.9 cm
Weight
90 g
Uric acid
90 - 1200 μmol/l (1.51 - 20.17 mg/dl)
Creatinine
44 - 1320 μmol/l (0.50 - 14.93 mg/dl)
Urea
0.9 - 40 mmol/l (5.41 - 240.24 mg/dl)
