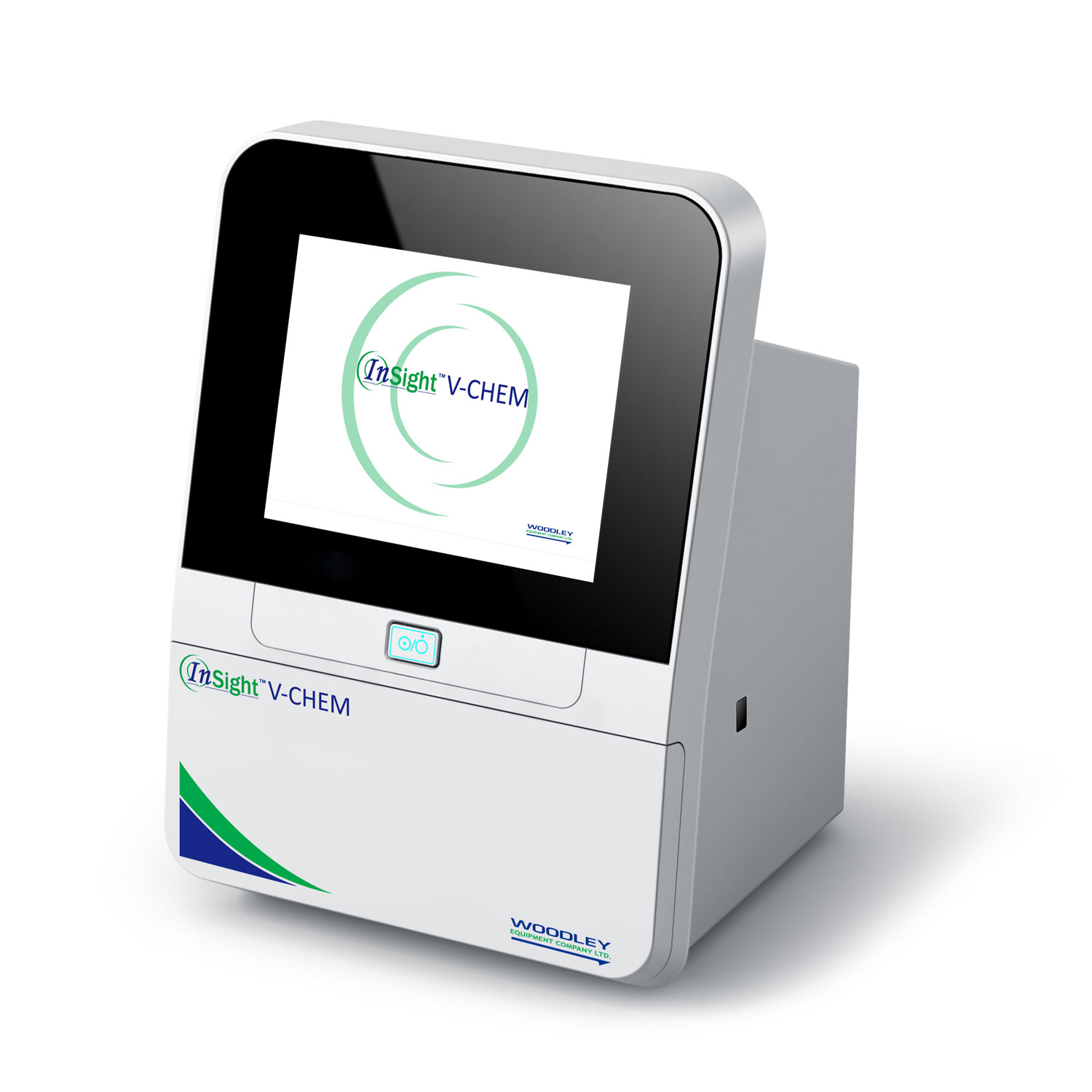

InSight V-CHEM Veterinary Chemistry Analyser

Veterinary

InSight V-CHEM Veterinary Chemistry Analyser WD1800

Woodley Equipment · WD1800

Article No. AK-VET-1297

Product details

Article number
AK-VET-1297
Category
Veterinary
Brand
Woodley Equipment
Model
WD1800

Description

*We regret to inform you that due to manufacturer regulations this product can only be sold through our German online shop at www.AKLION.de. Please contact the manufacturer (Woodley Equipment) to find a dealer in your country. The InSight V-CHEM veterinary chemistry analyser for the veterinary laboratory simultaneously measures up to 15 of a total of 32 available parameters - in just eight minutes. In just a few simple steps, whole blood, plasma or serum can be analysed quickly, cleanly and accurately. In addition to an internal memory, the device has a built-in thermal printer. You can not only save the results or transfer them to an external device, but also print them out directly. The analyser also has integrated WiFi and a 3G module. By connecting to the internet, you can automatically download any new version of the software or upload error logs to the cloud server. Internal memory for up to 50,000 set of patient and quality control data The InSight V-CHEM system is based on microfluidic technologies and consists of the analyser and disposable test discs. The device contains a variable speed motor to rotate the disc and a photometer to measure concentration values. Each test

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Woodley Equipment
Model
WD1800
Product type
Analysis Devices
Application
Veterinary practice
Sample material
whole blood, serum or plasma
Sample quantity
100μ
Analysis time for whole blood
8 minutes
Analysis time for serum or plasma
7 minutes
Menu languages
English, German, French, Spanish, Italian, Russian, Chinese
Electrolytes
CO2, Na+, K+, Na+/K+, Ca, P, Mg, Cl-
Liver
TP, ALB, GLO, ALT, AST, GGT, ALP, TBIL, DBIL, IBIL
Kidneys
ALB, BUN, CRE, BUN/CRE, K+, CO2, Ca, P, UA
Pre-anaesthesia
TP, ALT, ALP, CRE, BUN, GLU
Pre-anaesthesia PLUS
TP, ALT, AST, ALP, CK, LDH, CRE, BUN, GLU
Intensive care acute diagnostics
ALT, CRE, BUN, CO2, K+, Na+, Cl-, GLU
Diabetes
GLU, CHOL, TG, FRU
Ammonia
NH3
Large animals
TP, ALB, AST, GGT, ALP, CK, BUN, Ca2+, P, Mg
