ISO transponder

Veterinary

ISO transponder ID162-PM

Teledart · ID162-PM

Article No. AK-VET-1319

Product details

Article number
AK-VET-1319
Category
Veterinary
Brand
Teledart
Model
ID162-PM

Description

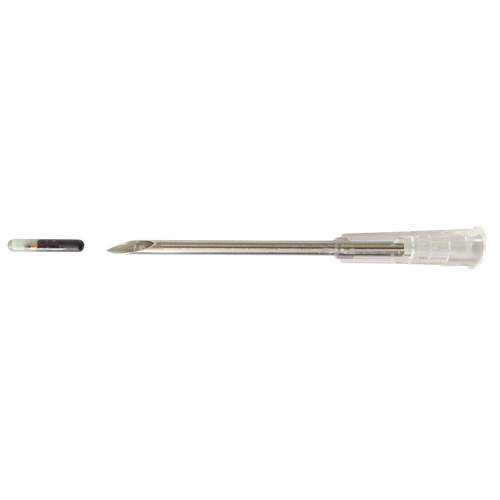

The ISO transponder is the global standard transponder, placed under the skin to identify small animals such as dogs. The ISO transponder contains a globally unique 15-digit number code to identify the animal unambiguously. It is a passive chip that only reveals its data to the electromagnetic waves of the chip reader. It is injected gently using a separately available disposable or reusable injector. Generally, neither an aesthetic nor a sedation is required for this procedure. The cannula of the ISO transponder is only slightly larger than normal veterinary needles. Benefit from stockpiling: For purchases of 10 ISO Transponders or more, we'll grant you an attractive bulk purchase price per piece! Practical tip: In addition to making a note on the customer's file at the veterinary practice, it is also recommended to register the animal/transponder in a free pet directory that stores the pet owner's details and the transponder code.

Request a quotation

Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.

Technical specifications

Brand
Teledart
Model
ID162-PM
Product type
Animal Identification
Application
Veterinary practice
Cannula size
Outer diameter: 2.6 mm, length: 55.5 mm
Total dimensions
Diameter 2.12 mm, length 12 mm
Weight
0.09 g
Material
Bio-glass
Max. reading distance
200 mm (dependent on the reader)
Protection type
IP 68
Excitation frequency
134.2 kHz
Data content
64 bit (ISO 11784)
Code
EPROM, Read-Only
Transmission
ASK, in accordance with ISO 11785 FDX-B
