Willway ELYSION Motor Control WE-550PR-EM
Willway Biotech · WE-550PR-EM
Article No. AK-VET-1847Product details
- Article number
- AK-VET-1847
- Category
- Veterinary
- Brand
- Willway Biotech
- Model
- WE-550PR-EM
Description

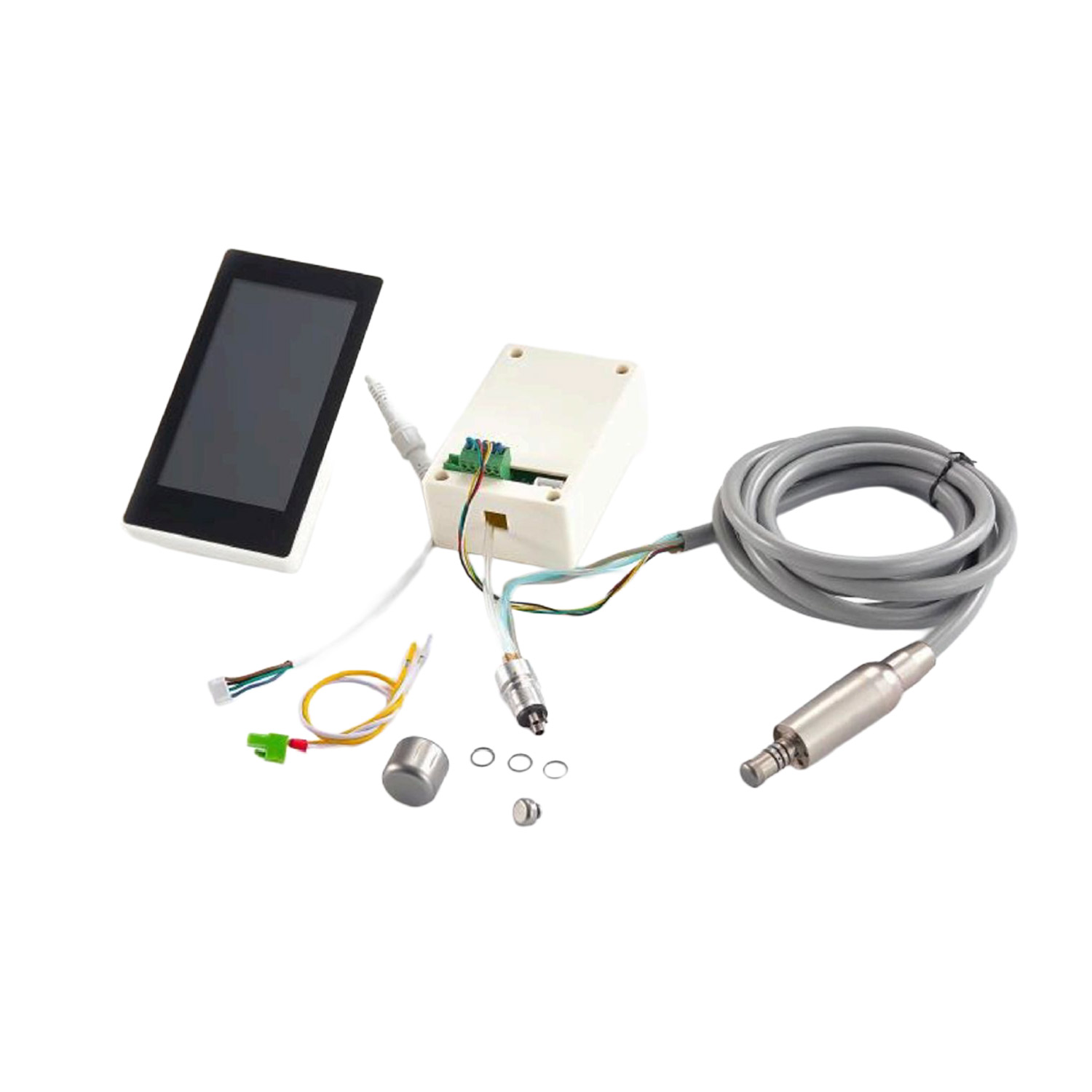

The Willway ELYSION Motor Control is a digital LCD control panel designed for use with the Willway ELYSION Dental System. It enables precise control of the system's electric dental motor in veterinary dentistry, with motor speeds from 2,000–40,000 rpm shown on the clear digital display. Gear ratios of 1:1, 1:5, 16:1 and 20:1 allow the motor settings to be adapted to different dental procedures. The intuitive controls allow the rotation direction to be switched between forward and reverse, while the motor LED can be switched on or off as required. The integrated Memory Mode M1 stores preferred settings for quick access during treatment. A Stock Mode is also available for specific treatment situations. The motor control connects directly to the control unit via a Control Panel Connector and is specifically designed for integration into the Willway ELYSION Dental System.
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Willway Biotech
- Model
- WE-550PR-EM
- Product type
- Dentistry
- Application
- Veterinary practice
- Compatibility
- Willway ELYSION Dental System
- Speed range
- 2,000–40,000 rpm
- Rotation direction
- Forward / backward adjustable
- Control element
- Digital LCD control panel
- LED control
- Motor LED switchable on and off
- Memory function
- Memory Mode M1 for saving preferred settings
- Additional function
- Stock Mode to support special treatment situations
- Connection
- Control Panel Connector to the Control Unit
- Input voltage
- 24 V
- Current consumption
- max. 2.5 A
- Motor
- Integrated LED electric motor
- Max. motor torque
- > 1 Ncm
