Veterinary
Willway ELYSION Portable Dental Unit WillWay ELYSON
Willway Biotech · WillWay ELYSON
Article No. AK-VET-1849Product details
- Article number
- AK-VET-1849
- Category
- Veterinary
- Brand
- Willway Biotech
- Model
- WillWay ELYSON
Description

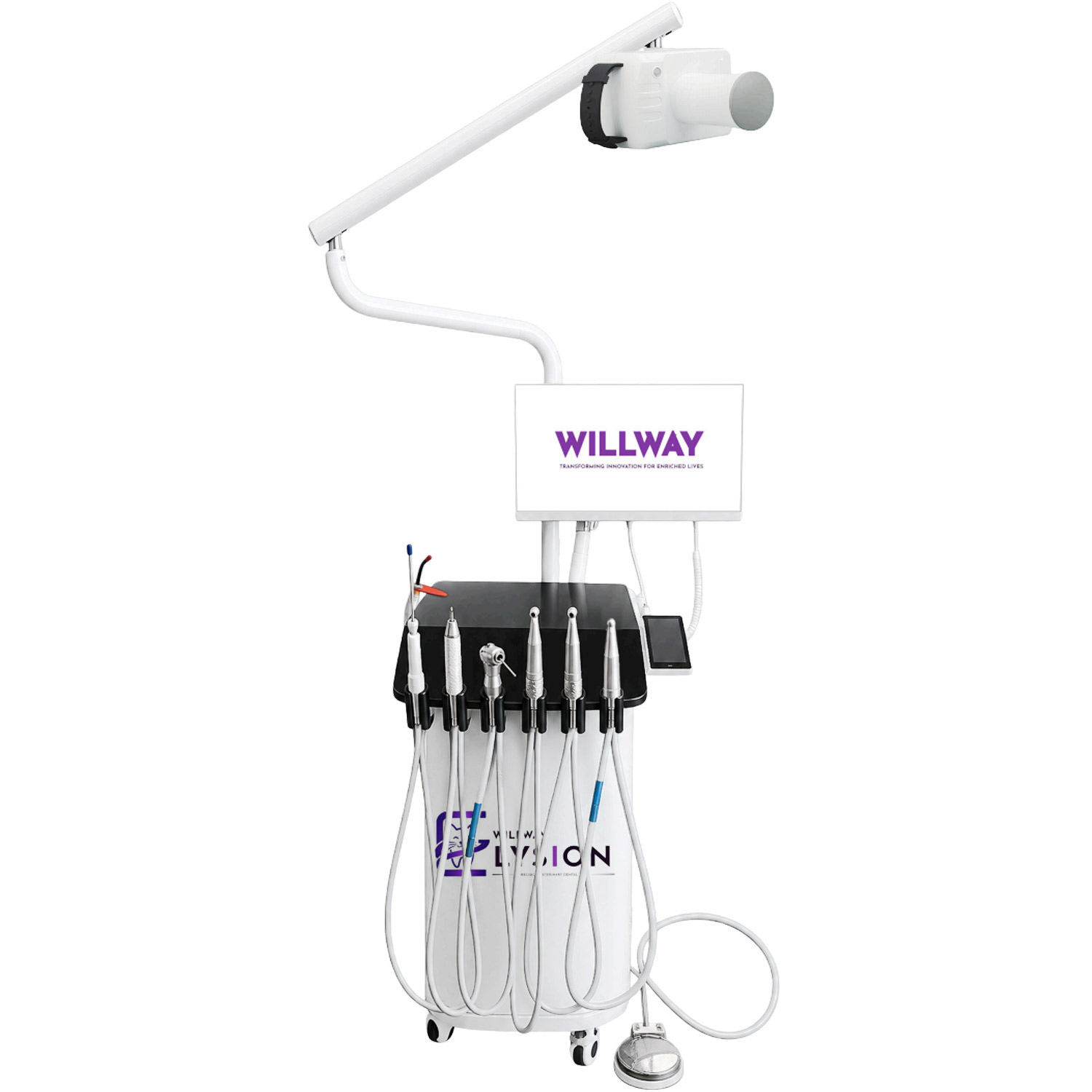

The Willway ELYSION Portable Dental Unit is an all-in-one system for veterinary dental treatment, imaging and documentation. It combines powerful electric motors with an integrated LED electric motor offering a speed range of 2,000–40,000 rpm, as well as a range of handpieces for precise grinding, cutting and polishing. The system combines dental treatment with digital imaging and includes a high-resolution oral camera for intraoral photos and videos and a portable dental X-ray device with an adjustable tube voltage of 60–70 kV. Images can be stored and edited together with patient data, supporting efficient documentation, diagnostics and long-term monitoring. An integrated suction system and 3-way syringe for water, air and spray help maintain a clean working environment during dental procedures. An integrated LED light-curing function also supports the use of light-curing materials. The handpieces can be sterilised at 121 °C for 20 minutes or 132 °C for 15 minutes, supporting hygienic reprocessing in veterinary dental practice. The unit also features an integrated touchscreen computer system with a powerful processor and large memory for intuitive operation and comprehensive trea
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Brand
- Willway Biotech
- Model
- WillWay ELYSON
- Product type
- Dentistry
- Application
- Veterinary practice
- Speed range
- 2,000–40,000 rpm
- Max. torque
- > 1 Ncm
- Motor size
- Ø 21 × 70 mm
- Sterilisation
- 121 °C for 20 min or 132 °C for 15 min
- Tube voltage
- 60–70 kV, adjustable
- Tube current
- 2.5 or 3.5 mA
- Exposure time
- 0.01–1 second
- Inverter frequency
- > 100 kHz
- Weight
- approx. 1.8 kg
- Airflow
- 40 l/min
- Noise level
- 63 dB
- Fresh water tank
- 1 l
- Waste water tank
- 2 l
