Imaging & Radiology

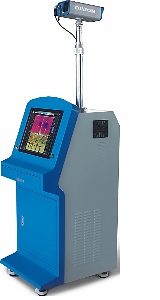

Thermal Imager DIXION HY
DIXION
Article No. AK-IR-002Product details
- Article number
- AK-IR-002
- Category
- Imaging & Radiology
- Brand
- DIXION
Description
Non-contact thermal imaging camera for body-temperature screening at clinic and building entrances. Measures within about one second at a distance of 2–10 metres with 0.05 °C resolution, screens several people in the field of view at once and provides a high-resolution digital output with configurable alarm thresholds.
Request a quotation
Equipment standard by AKLION — configuration, accessories and lead time are confirmed on the quotation.
Technical specifications
- Models
- HY-2005B
- Measurement accuracy
- ±0.2°С
- Temperature range
- 0°С ~ 50°С
- Resolution
- 640x512
- Minimum focus distance
- 19mm
- Max. focus distance
- 200m
- Detection area
- 0.63mrad
- Field of view
- 32°x26°
- Тermal sensitivityNETD
- 0.05°С
- Interface connection
- Ethernet, TCP / IP, UDP
- Operating temperature
- – 20°С ~ 50°С
- Power supply
- 220 V
- Measurement width (optimum) L
- ≤2.5m
- Measurement distance (optimum) S
- 6-8m
