Ventilator Aeros
Choose model — 2 available
Dixion
Article No. AK-ICC-020

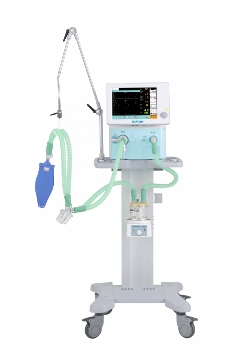

Aeros 4600 Plus combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU.
Equipment standard by AKLION.
Specifications
- Ventilation modes
- VCV (A/C) / PCV (A/C) / PSV PRVC / STANDBY / SIMV (VCV) +PSV / SIMV (PCV)+PSV / SIMV (PRVC)+PSV / SPONT/CPAP+PSV / BIVENT/APRV +PSV / NIV/CPAP, NIV-T, NIV-S/T
- Tidal volume
- 20 – 2000 ml
- Respiratory rate
- 1 – 80 bpm
- Inspiratory time
- 0.2 – 9s (adult) / 0.2 – 5s (pediatric)
- I:E ratio
- 1:10 – 4:1
- Trigger sensitivity (pressure)
- -2 – 0 kPa
- Trigger sensitivity (flow)
- 0.5 – 20 l/min
- PEEP/CPAP
- 0 – 3,5 kPa
- Pinsp.
- 0.5 – 7 kPa
- Pmax
- 8 kPa
- O2-Concentration
- 21 – 100%
- EtCO2
- optional
- Monitoring
- Pressure values: / Pplat, Ppeak, Pmean, Pmin, PEEP / Volume/Flow values: / VTi, VTe, MV, MVe, MVspont / Time values: / ftotal, fspont, I:E / Oxygen monitoring: / Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2) / Pressure/Volume loop, / Pressure/Flow loop, Flow/Volume loop / Compliance (dynamic & static), Resistance, Mvleak, RSBI, WOB, I:E, Vdaw, PEEPi
- Alarm
- MV high/low / Paw high/low / Vte low / PEEP high/low / FiO2 high/low / etCO2 high/low / fspont high / Apnea alarm, Disconnection / Flow sensor error / Gas supply failure / Power supply failure, Battery low/exhausted / Apnea
- Power supply
- AC100 – 240 V, 50/60 Hz
- Gas supply
- 0.28-0.6 Mpa
- Dimensions(Basic unit)
- 375x395x430 mm
- Weight
- 15 kg
Inspiration pause time
Psupport
