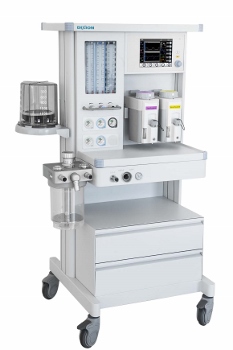

Anesthesia Workstation Practice

Technical specifications

Gas supply

O2, N2O, Air: 0.28 – 0.6 Mpa

Working mode

closed, semi-closed, semi-open

Driven mode

Pneumatically driven and electronically controlled

Safety valve

≤10 kPa

Operating mode

Manual/Ventilation

Flowmeters

O2: 0-1L/min; 1-10l/min / N2O: 0-1L/min; 1-10l/min / O2 flush: 25 – 75l/min

Patient Type

Adult, pediatric

Ventilation modes

IPPV, PLV, SIMV, Spont (with apnea back up) Manual,Standby

Setting

Touch-key & navigator wheel knob

Tidal volume

20 – 1500 ml

Respiratory rate

4 – 100 bpm

I:E ratio

4:1 – 1:8

Ppeep

0 – 30 cm H2O (optional)

Inspiratory plateau

Off, 5% -60%

Pressure range

5-70 cm H2O

Trigger sensitivity (flow)

2 – 30 l / min

Alarm

Pressure: Paw high/low limit / Volumes: MV high/low limit / Gas: FiO2 high/low limit (optional) / Airway malfunction / Low O2 supply pressure / Power failure

Monitoring display

8.4 inch color touch screen / Pressure: Ppeak, PEEP, Pplat, Pmean / Volumes: MV, Vt / Respiratory rate / Compliance / Gas: O2, CO2, Agent (all optional) / Graph: P-T, F-T

Mains

100 – 240V AC, 50/60 Hz

Battery

24 V DC ( min.120 min)

Storage temperature

-20 – +55°C

Storage humidity

≤93%

Working temperature

+10 – +40°C

Dimensions (HxWxD)

1356x845x620 mm

Weight

110 kg (basic unit)

Vaporizer

Support 2 vaporizer

Agent type

Halothane, Enflurane, Isoflurane, Sevoflurane available
